Masterteam Warless Microphone MT-WM-88U-1 Channel – Clip-On

Overview

The Masterteam MT-WM-88U One Channel Wireless Microphone System is designed for seamless sound transmission in professional settings. Whether for live events, classrooms, or karaoke, the system offers stable signal transmission and clear sound quality across long distances.

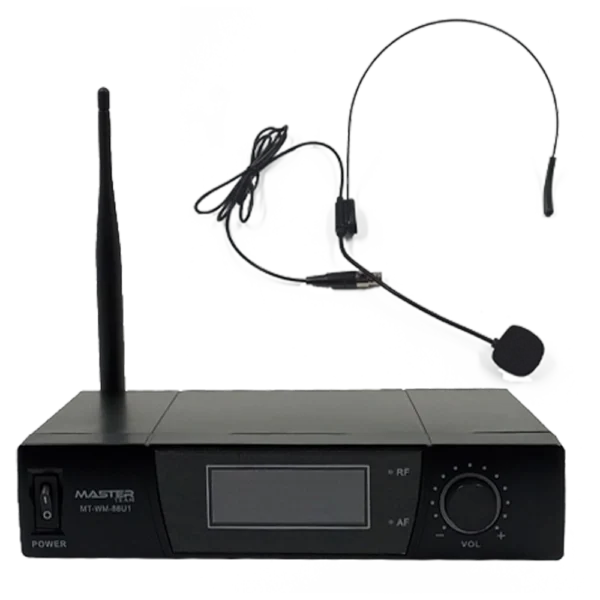

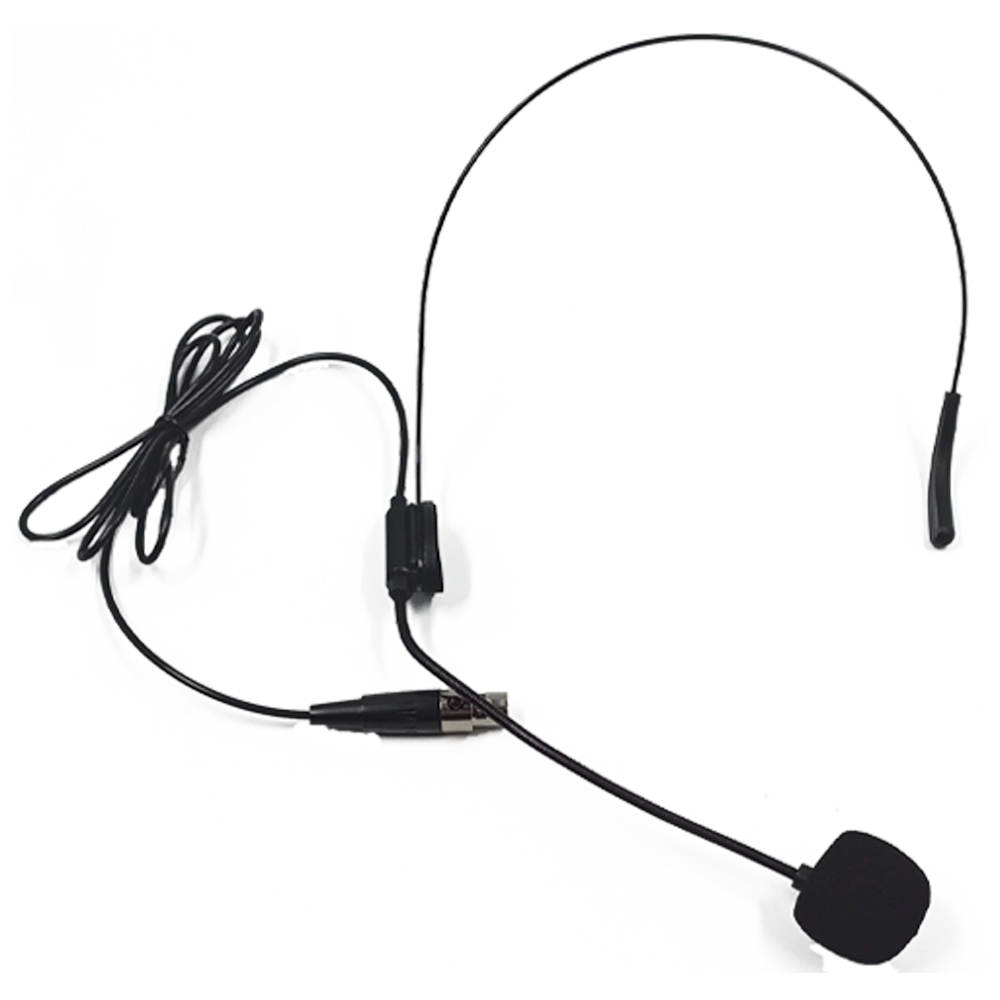

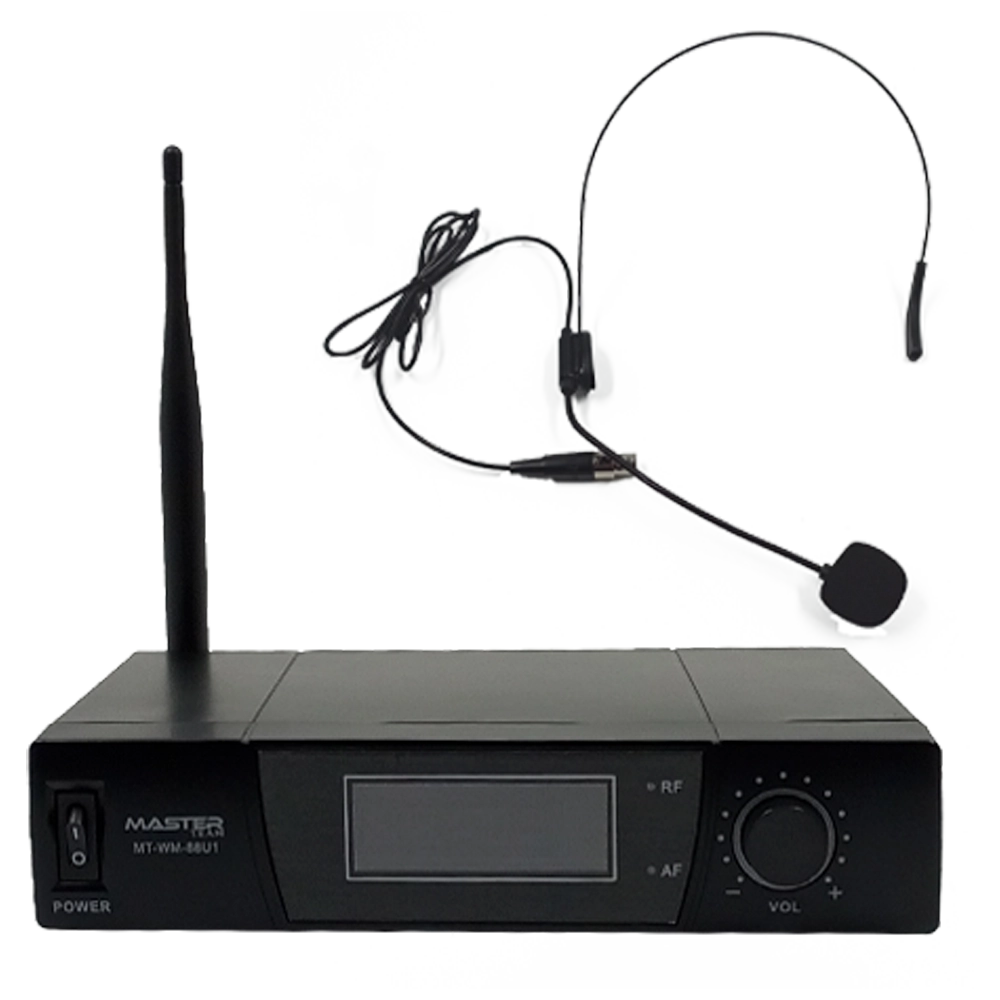

This system includes a clip-on microphone, allowing hands-free operation while maintaining a clean audio signal. Its one-channel diversity system minimizes interference, ensuring smooth performance in any environment.

Key Features

• Rated Power: 13.5W for powerful sound output.
• One-Channel System: Supports one microphone with 100 selectable channels for flexibility.
• Wireless Coverage: Provides a range of up to 100 meters for unrestricted movement.
• High S/N Ratio: Ensures clear sound with minimal background noise.
• Impedance: Compatible with 4–16Ω audio systems.
• Power Supply: Operates on 110–220V AC, making it versatile for various power setups.
• Compact Design: Sleek and portable, with dimensions of 40x210x160 mm for easy setup.

Diagram

1. 1. Power On/Off Switch (Receiver): Controls the receiver unit.
   2. Volume Adjustment for Channel A: Allows fine-tuning of audio levels.
   3. LCD Status Display Screen: Provides real-time feedback on system status.
   4. Power On/Off Switch (Sender): Powers the microphone unit.

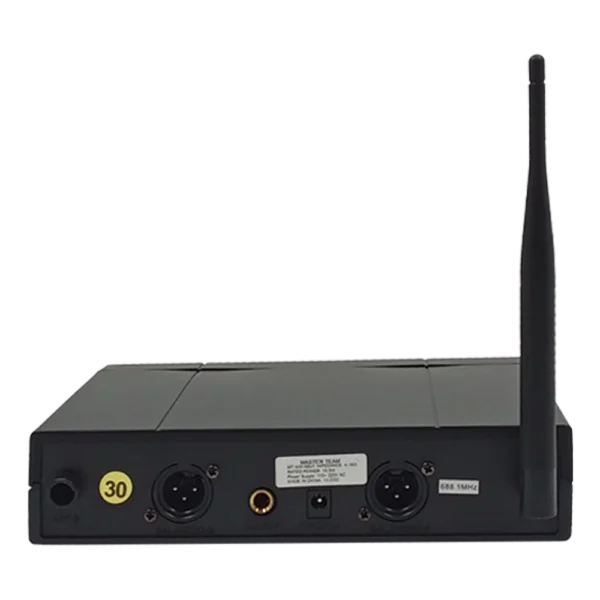

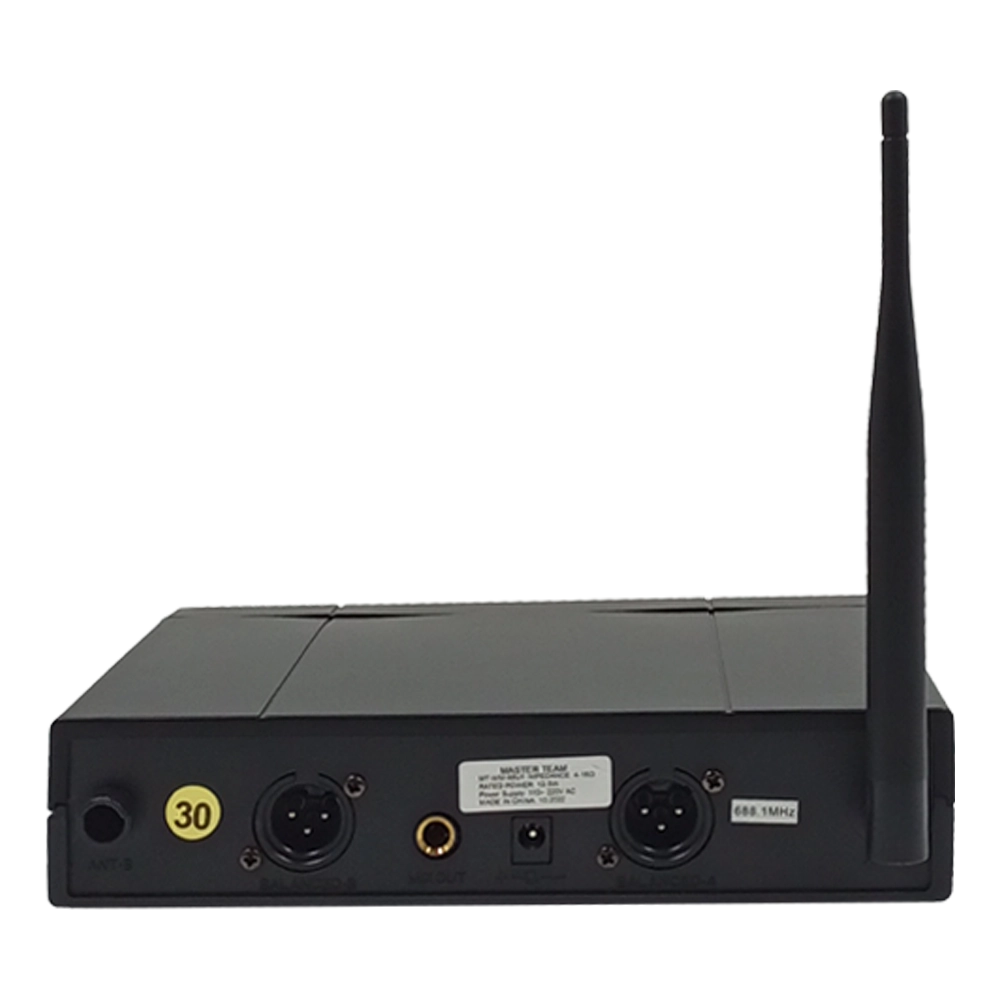

   5. Antenna: Ensures stable wireless signal transmission.
   6. Channel Output B: Secondary audio output option.
   7. Power Supply DC Input: Connects to the power source.
   8. Mixed Audio Output: Combines audio signals into a single output.
   9. Channel Output A: Primary audio output option.
