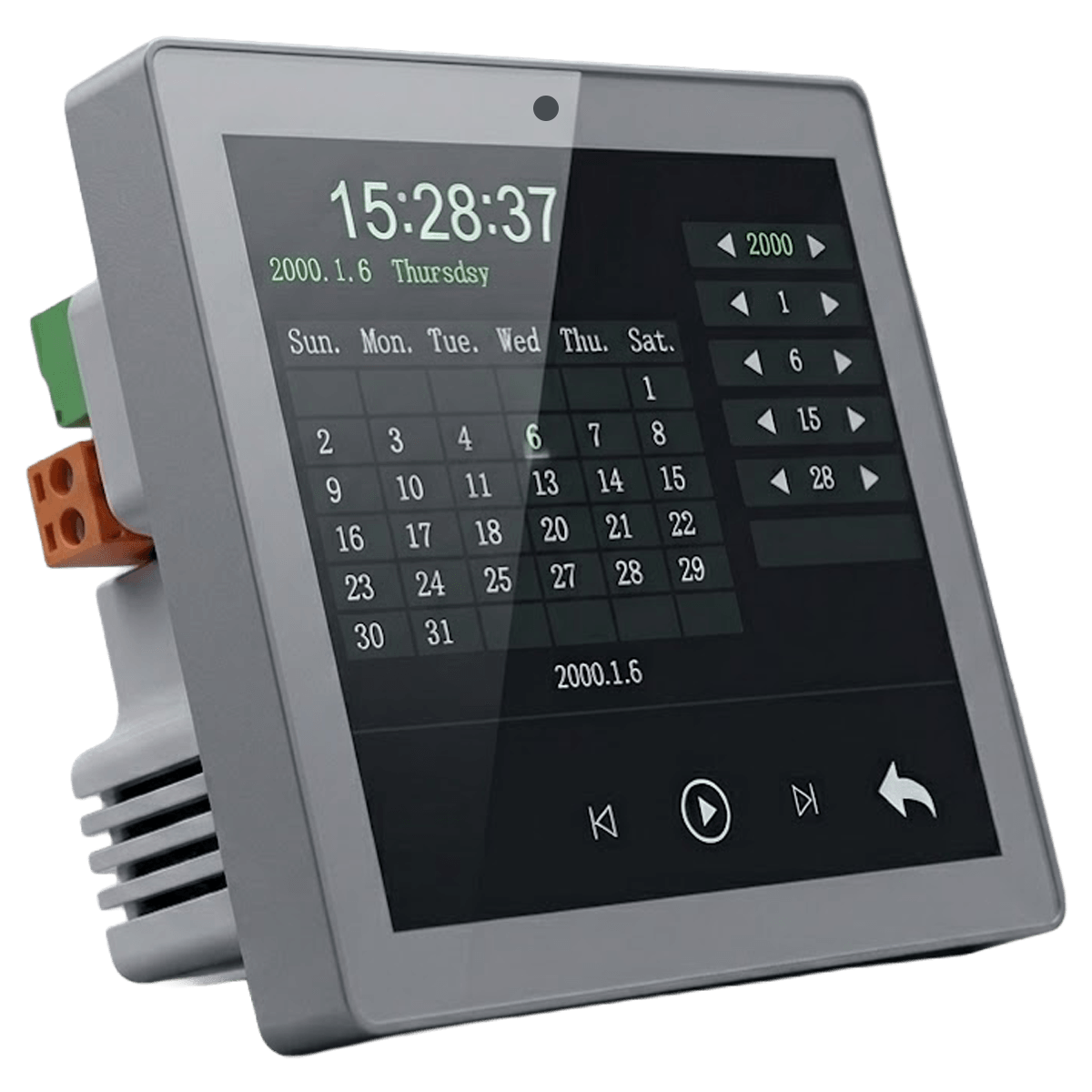

MASTER TEAM MT-BA-425TC Wall Amplifier
4,399.00 EGP
Availability: 1 in stock
The MASTER TEAM MT-BA-425TC is a 4-channel wall-mounted audio amplifier with 4×25W output power and a 4-inch capacitive touch screen. It supports FM radio, TF card playback, USB OTG, audio input/output, remote control operation, and doorbell trigger functionality, making it suitable for homes and commercial audio installations.
MASTER TEAM MT-BA-425TC Wall Amplifier
The MASTER TEAM MT-BA-425TC is a compact wall-mounted audio amplifier designed for residential and commercial audio applications. Its standard 86-type wall installation allows easy integration into homes, offices, shops, classrooms, and other multi-room audio environments.
The amplifier features a 4-inch capacitive touch display with a 480×480 IPS resolution and delivers 4×25W audio output. It supports speaker impedance from 4–8 Ohms and can connect multiple speakers depending on the installation configuration.
For media playback, the MT-BA-425TC supports built-in FM radio, TF card playback up to 32GB, USB OTG connectivity, and audio input/output connections. It also includes infrared remote control functionality for convenient operation.
Additional features include doorbell trigger support and optional RS485 integration with third-party systems.
Key Features
- 4 × 25W audio output
- 4-inch IPS capacitive touch screen
- 480 × 480 display resolution
- Built-in FM radio with auto tuning
- Supports up to 32GB TF card
- USB OTG interface
- Audio input and output connections
- Infrared remote control
- Doorbell trigger function
- Optional RS485 integration
- Standard 86 wall-mounted installation
Technical Specifications
| Specification | Value |
|---|---|
| Model | MT-BA-425TC |
| Output Power | 4×25W |
| Speaker Impedance | 4–8 Ohm |
| Display | 4″ Capacitive Touch Screen |
| Resolution | 480×480 IPS |
| TF Card Support | Up to 32GB |
| USB | OTG USB |
| THD | 0.03% (1W, 1KHz) |
| Frequency Response | 20Hz–20KHz (+/-2dB) |
| SNR | 98dB |
| Power Supply | 110–250V AC |
| Dimensions | 86×86×111 mm |
| Weight | 0.42 kg |
